2500kg - 3500kg Diesel Forklifts Lowest 5800USD with integral sideshift / fork positioner

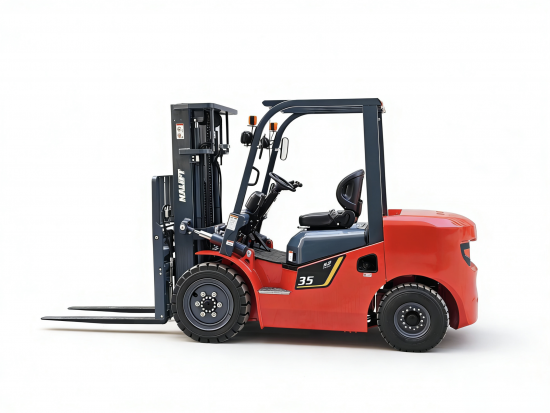

2500kg Diesel Forklifts 6900USD-10300USD with integral side shift and fork positioner Mitsubishi/Quanchai Engine
  • Item no.:

    Diesel Forklifts 25
  • Payment:

    EXW/FOB/CFR/CIF/DDU
  • Price range:

    1 - 5/$5800
  • Price range:

    1 - 5/$10000
  • Product origin:

    China
  • Color:

    Customized
  • Shipping port:

    Any port in China
  • Lead Time:

    30 Days
  • Product Details
Product Item:2.5 Ton Fuel Forklift Introduction


Our 2.5-ton fuel forklift is a robust material handling solution ideal for warehouses, factories, logistics hubs, and outdoor worksites. Powered by a high-efficiency fuel engine, it delivers reliable power for loads up to 2500kg, balancing fuel economy and low emissions to meet global environmental standards.

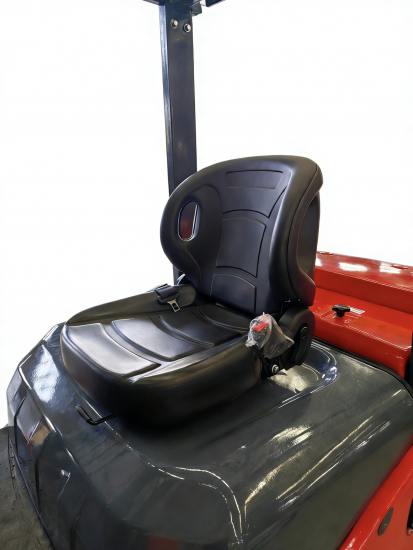

Equipped with a precision hydraulic system, it offers a maximum lifting height of 4500mm (customizable), ensuring smooth, safe load handling. The ergonomic cabin features adjustable seating and intuitive controls, reducing operator fatigue, while comprehensive safety systems—including multiple brakes and overhead guard—protect users in all conditions.

Constructed with high-strength steel and wear-resistant tires (pneumatic for outdoor use), it delivers exceptional durability on various terrains. Easy maintenance minimizes downtime, and customizable options (fork length, attachments) enhance versatility. A cost-effective choice for boosting material handling efficiency across industries.


Technical Performance Parameters
 General Model CPCD
Power Type Diesel
 Load Capacity kg 3000  3500
 Load Center mm 500
 D imension  Lift Height mm 3000  3000
 Free Lift Height mm 105  110
 Fork Size mm 1220×125×45 1220×125 ×50
 Mast Tilt Angle deg 6 °/12 °
 Front Overhang mm 487  492
 Rear Overhang mm 562
Overall
Dimension
Length to face of fork mm 4019  4024
Overall Width mm 1225
Mast Lowered Height mm 2075
Mast Extended Height mm 4230
Overhead Guard Height mm 2100
Turning Radius(outsiade) mm 2555
Performance Full
load/No load
Travel Speed km/h 18/19
Lift Speed mm/s 450/470 410/420
Max.Gradeability % 15/20
Service Weight kg 4270  4600
Chassis Tyre Front 28×9-15-12PR
Rear 6.50-10-10PR
Tread Front mm 1000
Rear mm 970
Wheelbase mm 1750
Minimum ground clearance Mast mm 125
Dr ive units & control Battery V/AH 12/80
Engine  Model Quanchai QC490GP
 Rated output/r.p.m kw/r.p.m 37/2650
Rated torque/r.p.m Nm/r.p.m 160/1980
NO.of Cylinder 4
Bore×Stroke mm 90×105
Displacement L 2.67

Transmissions
Type Electronic shift
Stage ( FWD/RVS) 1-1
