Products
New Products

Electric narrow aisle forklift trucks

Nalift30 rated capacity 3000kg, mast height from 4300mm to 12400mm. Nalift has advanced production lines, complete research and development equipments and quality services providing customers first-class product experience.

  • Item no.:

    NALIFT30
  • Payment:

    EXW/FOB/CFR/CIF/DDU
  • Product origin:

    China
  • Color:

    Customized
  • Shipping port:

    Any port in China
  • Lead Time:

    30 Days
  • Product Details
Product Item: Nalift 3T Electric Narrow Aisle Forklift Trucks


Nalift very narrow aisle forklifts can help you create more space you have. Since you can maneuver with these forklifts in a smaller space, you can stack your boxes and other inventory more closely. You don't need to leave such a wide passage open to create wasted floor space. You can use every square inch of your warehouse space and turn more of your storage area into shelves.


With a Nalift narrow aisle forklift, you help ensure the safety of your workers. You don't need to worry about reversing a large lift to a shelf and knocking boxes and inventory workers. Smaller forklifts are also easier to manage, so errors are less likely to occur, which can lead to safety issues.

The Nalift electric narrow aisle pallet stacker provides the lowest cost of ownership while maximizing space and productivity to benefit every users. Nalift double deep electric stackers are designed to withstand heavy-duty use both inside and outside, it can drive on any floor surface, eliminating double handling, moving pallet from lorry to racks in one step. Comparing to reach trucks, Nalift VNA trucks creats 30% more pallet positions, compairing to counterbance forklifts, it creats 50% morepallet positions. So the Nalift VNA articulated forklifts can save users much time, space and money.


Full Nalift articulated forklifts ranges are standard equipped with 80V AC ZAPI dual-core controller which makes it has a lower failure rates and creates lower heat after long time using, 80V AC lifting motor and driving motor and 80V 400ah-600ah lead acid battery or li-ion battery which provides stronger power, increases efficiency and greatly reduces maintenance costs.


Advanced Parts Descriptions


fingertip armrest



Fingertip armrest

Combines fingertip armrest and electro proportional valve, Nalift VNA forklifts provides better driving experience, more flexible and accurate operation. It also provides a special picking mode, easy for drivers to load/unload pallets in narrow aisles. With better inching performance, it makes the Nalift articulated forklifts very suitable for high-intensity work.



proportional valve

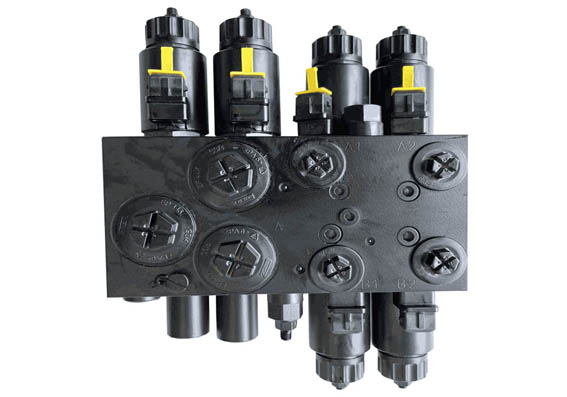

Proportional valve

Electro-hydraulic proportional valve match with fingertip armrest can adjust the speed of mast lifting/falling, side shift and tilting at will, making it easier and more accurate to pick up/unload goods in narrow aisles.


zapi controller





ZAPI Controller

Nalift VNA articulated forklift ranges are standard fitted with 80V full AC ZAPI dual-core controller. As the voltage is higher, it produces lower current, lower heating, lower failure rate. Therefore, all electrical components will have a longer service life.






electric motor




Lifting Motor (left)

Fitted with external encoder bearing, easy for maintenance. 80V AC 15kw/h
Lifting speed: 0.44/0.5m/s



Driving Motor (right)
Fitted with external encoder bearing, easy for maintenance
80V AC 19.5kw/h
Driving speed: 16km/h
Gradeability: 18%/20%



seat



Adjustable Suspension Seat

OPS system
Safe belt
High suitability


gear


Bearings

The steering motor drives the large gear ring through the small gear ring, which is more labor-saving and has longer service.


Extremely small gear clearance ensures structural stability and thus reduces failure rates.


10 years warranty for the gear.



cooling fan


Cooling Fans

All Nalift VNA forklifts are equipped with two efficient cooling fans, even in high temperature environment it can quickly cool down the motor and gear pump.

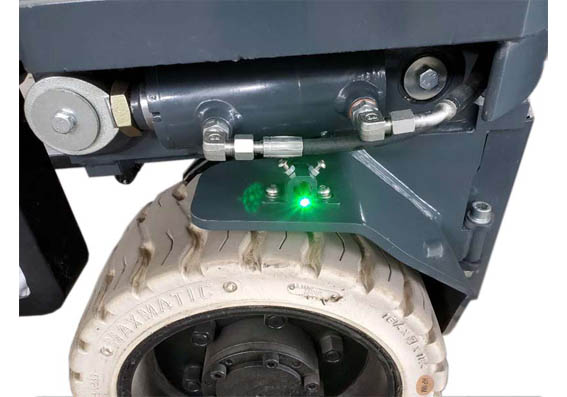

Guiding lasers

When the laser point to pallet center then drivers can steer direction, pushing forks into fork section accurately. It reduces accidents greatly.


Configurations

Standard parts Optional parts
Fingertip armrest Wireless camera and monitor
Electro-hydraulic proportional valve Lithium ion battery
80V AC ZAPI controller Double deep forks
80V AC lifting&;driving motor
Weighing forks
80V 400AH lead acid battery and customized charger station
Height pre-selector
LED &; warning light
Cabin
Cooling fans
White tyres
Triplex full free mast
Quad mast
Integral side shift Fork positioner
Load backrest

Black solid tyres

Backup mirror
Suspension seat with safety belt and OPS system

Guiding lasers

Specifications

Model Unit NALIFT30
Capacity KG 3000
Mast lift height MM 4300-12400
Mast free lift height MM 1365-4686
Mast closed height MM 2265-5665
Mast full extended height MM 5561-13739
Overall length(excluding forks) MM 2780
Ground clearance MM 50
Overhead guard height MM 2270
Chassis width rear MM 1600
Chassis width front MM 980
Load center MM 600
Wheelbase MM 1735
Seat height MM 1220
Mast tilt angle(back/fwd) DEGREE 3/1
Front chassis rotate angle(left/right) DEGREE 220
Ground speed KM/H 16
Lift speed(load/unload) M/S 0.44/0.5
Front tyre size MM 412x174
Rear tyre size MM 457x170
Grade ability(load/unload) % 18/20
Battery voltage/capacity V/AH 80/500
Weight including battery KG 5150
Weight excluding battery KG 7900
Traction motor KW 19.5
Lifting motor KW 15
Min net working aisle width MM 2100
Transfer aisle width MM 2700

Less Cost

Narrower Aisle
Higher Productivity


Lift Up To 12400mm
Smart Fingertip Armrest

80V Full AC Control System

Aisle Width As Narrow As 2100mm


The full range of the articulating narrow aisle forklift trucks:
NALIFT15 rated capacity 1500KG, lift height 4300mm -7050mm,
NALIFT20 rated capacity 2000KG, lift height 4300mm-10050mm,
NALIFT25 rated capacity 2500KG, lift height 4300mm-12400mm,
NALIFT30 rated capacity 3000KG, lift height 4300mm-12400mm.
