Hydraulic Double-Deep Reach Forks

 /New Double Deep Reach Forks
New Products
  • Trilateral Head
    Trilateral Head

    Features： Rational structural design and good vision; The integrally machined frame ensures smooth guide rail movement for high efficiency; High robust construction for minimal sway during maximum side-shift; Smooth side-shifting; ISO 2A and 3A are interchangeable.

    view more
  • Quick-Change Push-Pull
    Quick-Change Push-Pull

    Features： Rational structural design and good vision; High-strength steel for reduced weight; One-piece plate with high strength; Slide plate deposit function; Standard with side-shift; ISO 2A and 3A are interchangeable.

    view more
  • Bale Clamp
    Bale Clamp

    Features： Rational structural design and good vision; Simple combined structure, high strength, light dead weight and easy to maintain; The valve block incorporates a built-in safety valve to prevent cargo from falling during transportation in the event of hydraulic pressure loss; Open rapidly； ISO 2A and 3A are interchangeable.

    view more
  • Single-Double Pallet Handler
    Single-Double Pallet Handler

    Features： Rational structural design and good vision; With a synchronizing valve for coordinated fork movement; ISO 2A and 3A are interchangeable; Heavy-duty guide channel, capable of heavy-load operation.

    view more
  • Integral Sideshifting Fork Positioner
    Integral Sideshifting Fork Positioner

    Features： Small effective thickness； Good vision； Flexible operation.

    view more

hydraulic telescopic forks
hydraulic telescopic forks hydraulic telescopic forks hydraulic telescopic forks

New Double Deep Reach Forks

Hydraulic Telescopic forks can be used for double-deep rack system, for dual pallet load transport and as extensions for the handling of pallets when a variety of different pallet sizes are used. All models are standard with two cylinders in each fork. Those hydraulic extendable forks can be extended and retracted as fast as pantographs systems.

The sliding fork attachments are fitted with an integrated synchronization system allowing the reachforks to be extended and retracted in unison.

  • Payment:

    EXW/CFR/CIF/DDU

  • Product origin:

    China

  • Color:

    Grey

  • Shipping port:

    Any port in China

  • Lead Time:

    30 days
Inquire now
  • Product Details

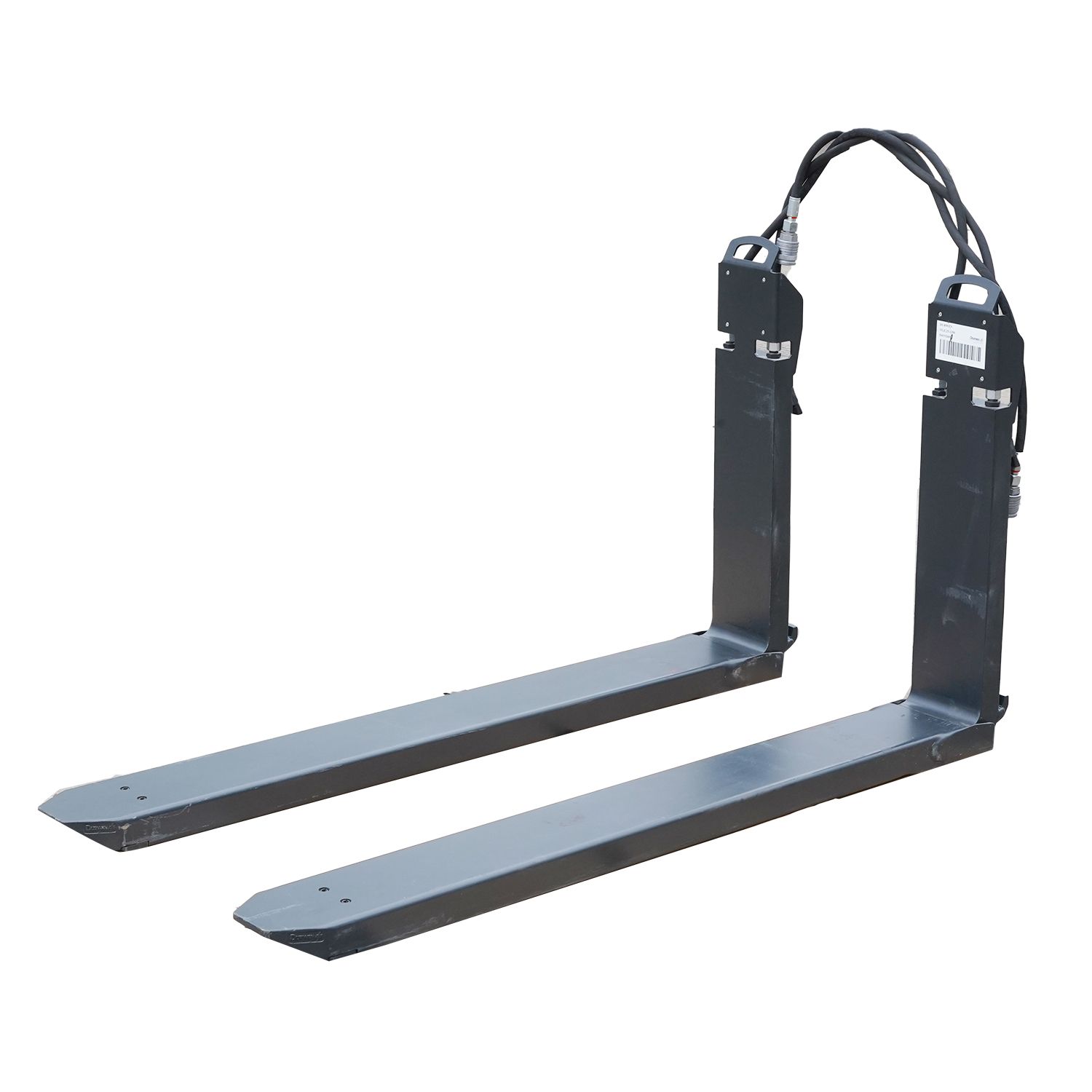

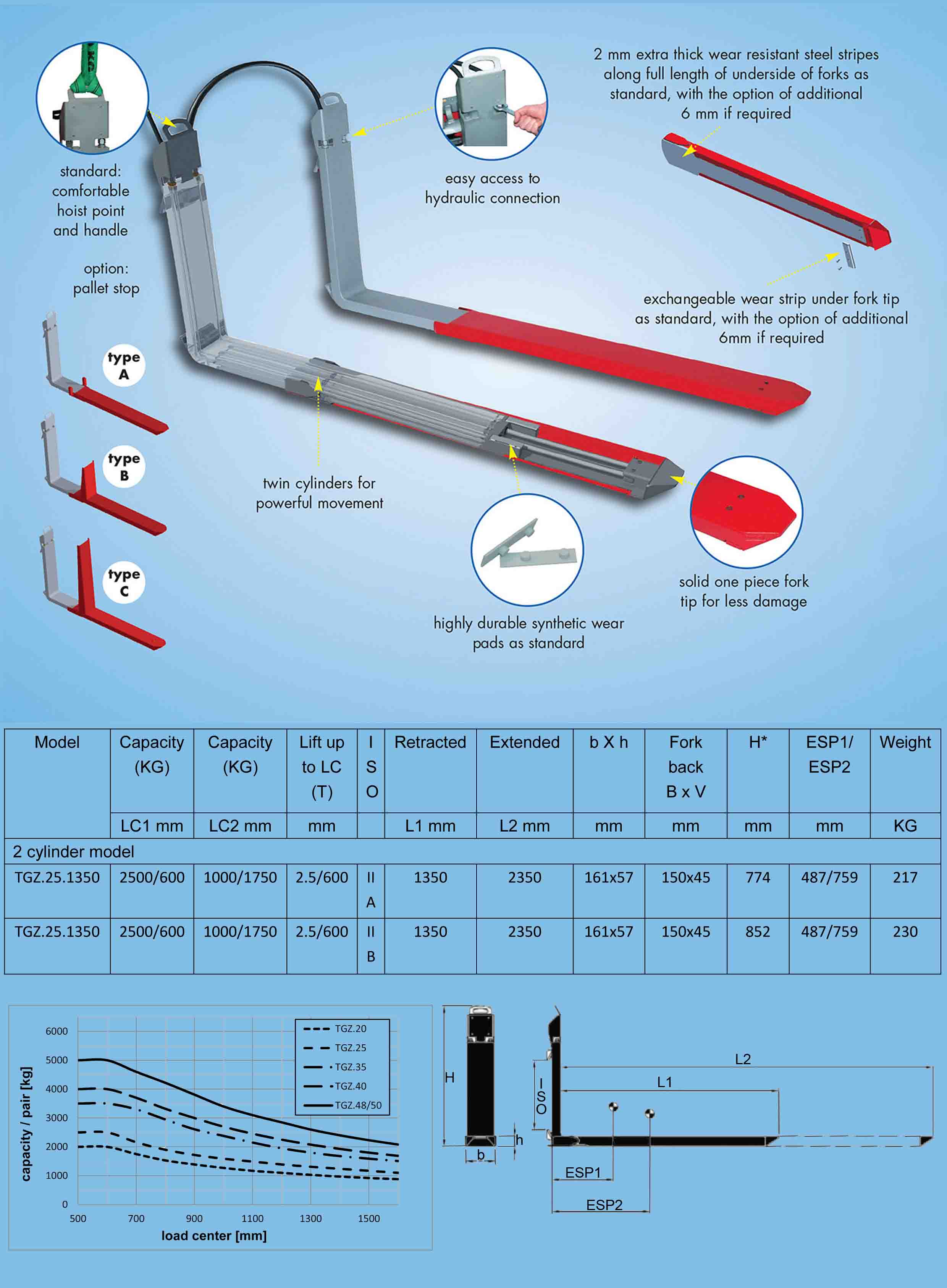

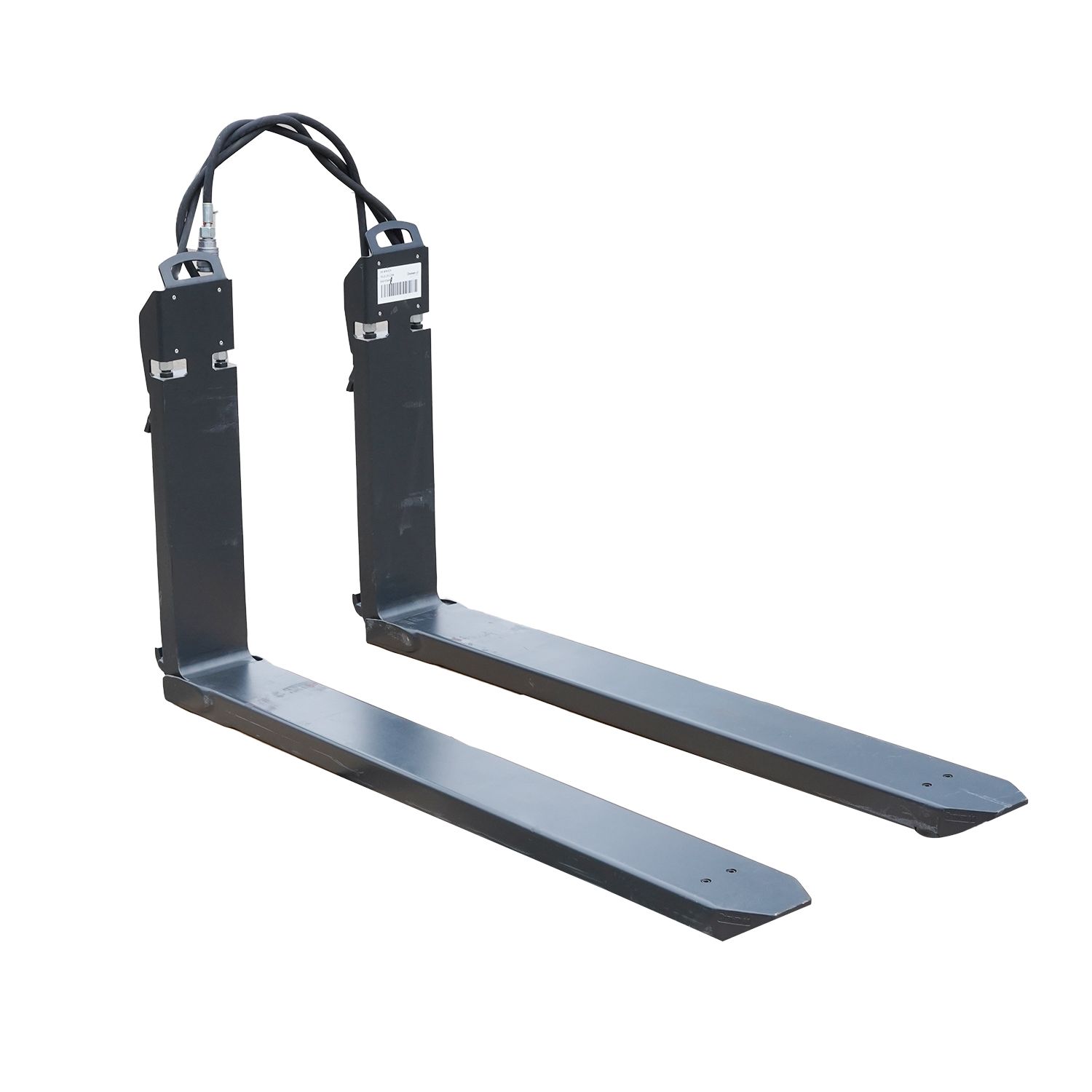

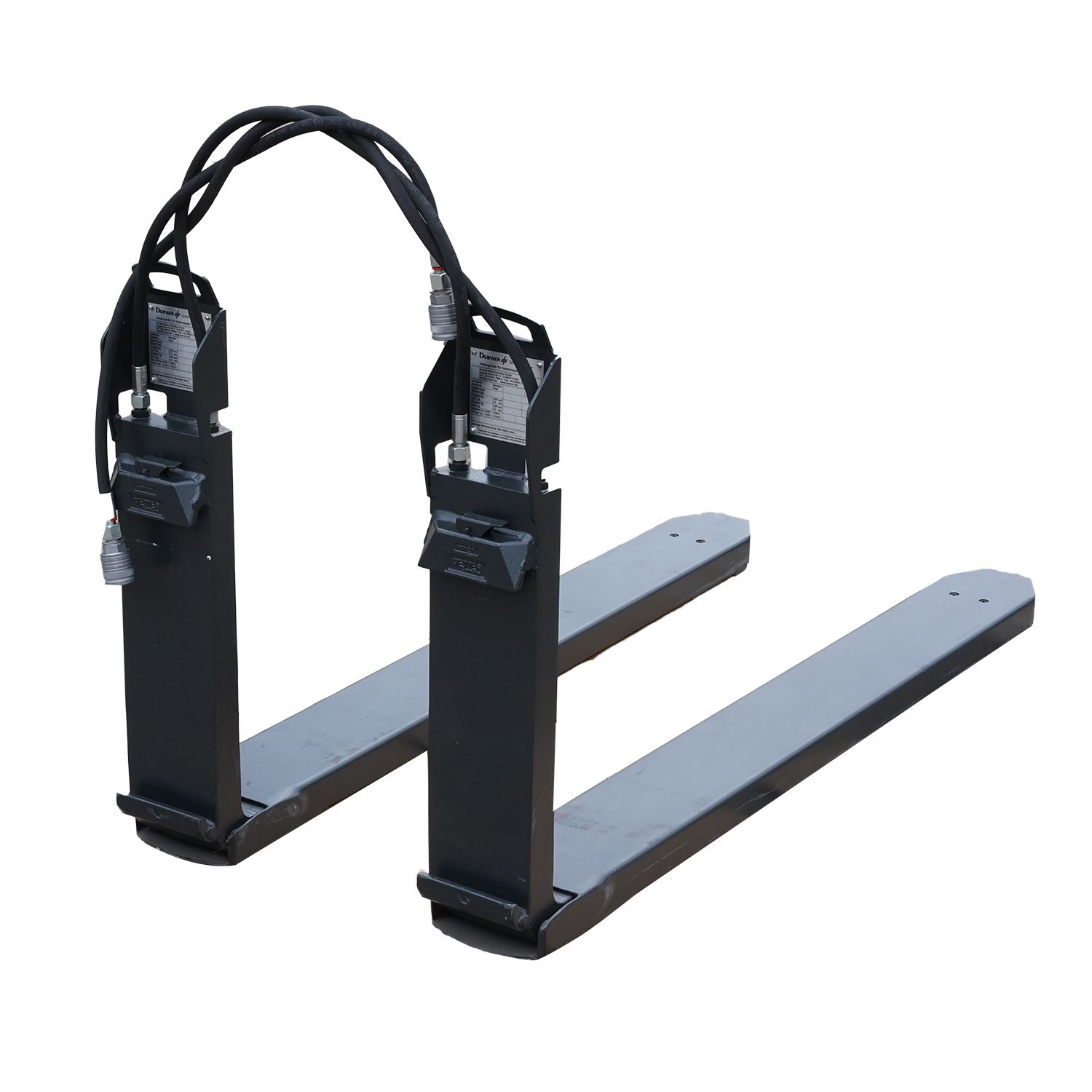

Hydraulic Double-Deep Reach Forks


Hydraulic Reach Forks can be used for double-deep rack system, for dual pallet load transport and as extensions for the handling of pallets when a variety of different pallet sizes are used. All models are standard with two cylinders in each fork. Those Telescopic Forks can be extended and retracted as fast as pantographs systems.

The sliding fork attachments are fitted with an integrated synchronization system allowing the reachforks to be extended and retracted in unison.



double deep forks

China telescopic forks

new hydraulic reach forks
